Add new shape objects (Pro Only)

With Foxit PDF Editor, you can also directly insert path and shading objects like rectangles, curve, straight line, etc. into your PDF as well as text objects and image objects. Shading objects are generally used to make shadows or nice backgrounds.

Add a path object

Add a shading object

²    Add a path object

To add a path object, please do the following:

• Locate the page where you want to insert the path in the document, and choose Edit > Add Shapes > choose one path you need. The cursor changes into a cross   . Click and drag the cursor to draw the path you want. Then click on the path, and the Format tab will appear in the right panel for you to modify the path with the commands. You can also adjust the size and shape by dragging the sizing handles.

Note: Sizing handles are the small circles or squares that appear at the corners and sides of a selected object. You drag these handles to change the size of the object.

• When drawing a path, you can press the Ctrl + Z or Ctrl+ Y to undo or redo your operation. After creating the path you intended, click anywhere outside the path.





 A     B   C     D    E    F    G    H     I

A. The Line command   B. The Rectangle command   C. The Round Rectangle command   D. The Ellipse command   E. The Polyline command   F. The Polygon command   G. The Bezier command   H. The Close Bezier command   I. The Free Paint command

To draw a straight line

1. Choose the Line command.

2. Click a region in the document where you want to create the drawing and draw the line.

3. Drag the handles to adjust the line size if necessary.

4. Click outside the path when you are done to set the line.

To draw a rectangle

1. Choose the Rectangle command to create a square-cornered path, or click the Rounded Rectangle command to create a round-cornered path.

2. Click a region in the document where you want to create the drawing and draw a rectangle.

3. Drag the sizing handle diagonally in the direction you want.

To draw an ellipse

1. Choose the Ellipse command.

2. Drag the pointer to draw an ellipse, or draw a circle with Shift.

3. Click outside the path when you are done to set the ellipse.

To draw a polygon, polyline, Bezier, or Close Bezier

1. Choose the Polygon command, Polyline command, Bezier command or Close Bezier command.

2. Drag the pointer to draw a straight line.

3. Click once at each position where you want a new line segment to appear.

4. To end a polyline or a Bezier, double-click the last point to complete the drawing. To end a polygon or a Close Bezier, do either of the following:

·      Double-click or right-click a point to draw the second to the last line of the polygon/ Close Bezier, and an additional line will be automatically drawn from this point to the start point.

·      Double-click the start point to finish drawing.

To draw a custom path

1. Choose the Free Paint command.

2. Draw a path you want by dragging the pointer.

3. Click outside the path when you are done to set the path.

²    Add a shading object

To add a shading object, please do the following:

• Locate the page where you want to insert the shading in your PDF document, and choose Edit > Add Shapes > choose the shading you need. The cursor changes into a cross . Click and drag the cursor to draw the shading you want. Then click on the shading, and the Format tab will appear in the right panel for you to modify the shading with the commands. You can also adjust the size and shape by dragging the sizing handles.

In the Format tab, you can choose a shading style to preset different shading colors and do any of the following to move the colors and change the shading effect:

1) Opacity: Drag the slider to change the opacity.

2) Gradient Stops: Describes the location and color of a transition point in a gradient. After choosing a shading style, you can also edit the shading color, like add new colors, delete existing colors, etc.

²  Move colors

Each color can be moved by clicking and dragging the slider .

²  Change colors to a shading

Double-click one color  you want to change, select the color you like in the Color dialog box and click OK.

²  Add colors to a shading

Select one color you like and click between any two sliders underneath the preview bar. There will be new colors added to the shading.

²  Delete colors to a shading

Click the slider  of the color you want to delete, and click Delete button . Also, you can move it away from the preview bar. The color will be removed from shading.

3) Reference Line: A line along which the field of shading varies between the start and end coordinates and from which the field of shading extends infinitely away. The start and end point are shown, connected by a line. The transition from one color to another varies linearly along the line. The color gradient begins at the start point and finishes at the end point.

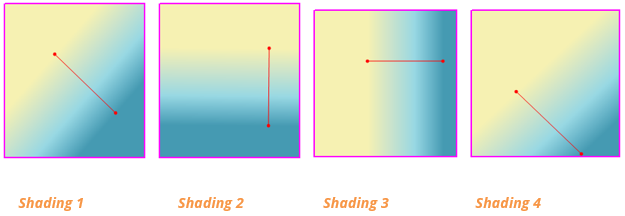

You can drag either start or end point to move it individually, or drag the line to move them both at the same time. This movement will change the shading effect. Compared with Shading 1, Shading 2 is dragging the start point to move, Shading 3 is dragging the end point to move, and Shading 4 is dragging the line to move.
